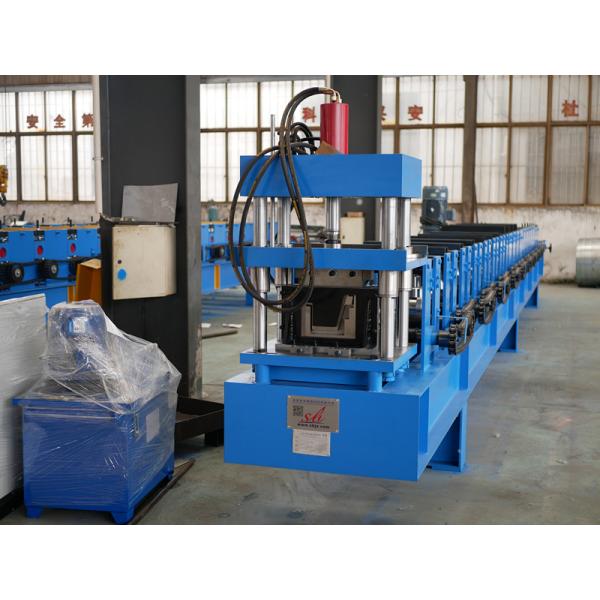

Gutter Making Machine with Wall Panel Structure Drive By Chain

Name: Gutter Making Machine with Wall Panel Structure Drive By Chain
Brand: Saibo
Price: 1 USD

China Gutter Making Machine with Wall Panel Structure Drive By Chain wholesale

Brand Name : Saibo

Model Number : YX101-123

Certification : CE/IS09001/SGS

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 410 sets per year

Delivery Time : 50 working days after received deposit

Packaging Details : Suitable for ocean shipment

Shaft : ￠56mm

Steel thickness : 0.5-0.9mm

Decoiler : Manual or hydraulic

Power : 4KW+3KW

Roller material : SAE1045 steel with chrome

Station : 12 stations

Drive : Single chain

Container need : 1X40GP

Contact Now

Mobile Protective Cover Gutter Roll Forming Machine Wall Panel 0.9mm YX101 - 123

YX101-123 Gutter Roll Forming Machine

1. 65mm solid shaft is used, and the H-shaped steel is used as the base frame, so that the gutter machine can withstand long-term production without deformation of the machine, thereby ensuring long-term production of gutters;
2. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of rain gutter.
3. cut frame is stress-relieved to ensure that it is not deformed during long-term production and makes the gutters smooth.
4. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the gutter forming machine, and the cutting length tolerance is within ± 2mm
5. forming speed can reach about 20 meters per minute

Gutter Making Machine with Wall Panel Structure Drive By Chain

Layout:

Gutter Making Machine with Wall Panel Structure Drive By Chain

Manual de-coiler—Pre-cutting—Feeding—Roll Forming—Cutting—Out table

Suitable Raw Material
Material	PPGI and PPGL Coils
Thickness	0.3-0.8mm
Coil width	610mm
Yield Strength	235Mpa

Specifications:

Item NO	Description	Offered specification
1	Roll Forming Machine	Gutter
2	Coil width	320mm
3	Rolling Speed	12-15m/min(not include cutting time)
4	Rolling Thickness	0.5-0.9mm Color steel, G550
5	Control System	PLC (Panasonic) as list in the note
6	Un Coiler	3T manual decoiler
7	Pre-cutting	By manual
8	Roller Stations	About 12 stations (according the final design)
9	Roller Material	45# forge steel, coated with chrome
10	Shaft Material and DIA	￠56mm, material is 45# forge steel
11	Post cutting	Hydraulic cutting after forming
12	Maim Motor Power	4kw
13	Hydraulic Station Power	3kw
14	Hydraulic Pressure	10-12Mpa adjustable
15	Material Of Cutting	Cr12Mov quenching 58-62℃
16	Structure Of The Stations	Wall panel
17	Tolerance	3m+-1.5mm
18	Electric Source	380V, 50HZ,3 phase According to customer’s require
19	Way Of Drive	By chain
20	Color Of The Machine	Yellow and blue
21	Size of the machine	LWH about 6.2m1.1m1.2m
22	Container Need	1x40 feet

Gutter Making Machine with Wall Panel Structure Drive By Chain

Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation

APPLICATION
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
Saibo machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

Machine work automatically, operate easily.
